Kiloview CV180 Broadcast-Grade SDI to HDMI/VGA/AV Converter Overview

Multi-Format Output from a Single SDI Input

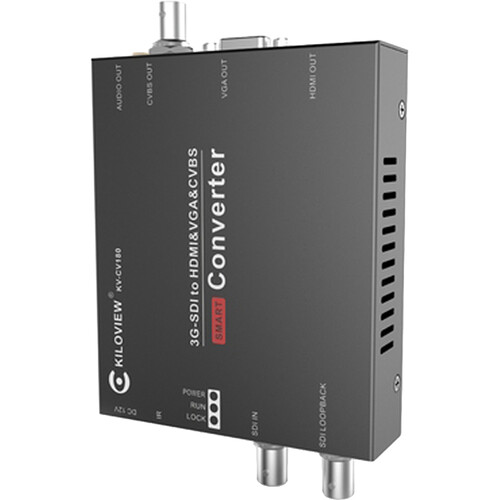

The Foto Crown Provide Kiloview CV180 SDI to HDMI/VGA/AV Converter is engineered to support demanding production and AV workflows where diverse output types are required. Designed with precision for professional use, it accepts SDI signals up to 3G-SDI and provides HDMI, VGA, and composite (CVBS) outputs—offering true versatility across legacy and modern systems. Housed in a compact form factor, this device performs reliably in studios, control rooms, mobile production kits, or live event environments.

Real-Time Signal Detection and Switching

The unit features auto-detection of SDI input formats, simplifying deployment and reducing configuration time. Whether SD, HD, or 3G-SDI sources are connected, the converter adjusts accordingly without manual intervention. Output formats are governed by user-defined DIP switch settings, allowing fast, tailored adjustments for different workflows. This enables the CV180 to easily integrate with a variety of display and broadcast systems while preserving signal fidelity.

A 10-bit internal data path is maintained throughout the signal chain. This minimizes color banding, compression artifacts, and quality loss, ensuring the delivered output is visually accurate and broadcast-ready. The converter is designed to retain original image clarity while transitioning between formats, avoiding unnecessary scaling degradation.

Dual Output Flexibility with Control Options

The CV180 supports two simultaneous active outputs selected from its HDMI, VGA, or composite interfaces. For most users, HDMI and CVBS are preselected by default from the factory. However, configurations can be adjusted using the supplied IR remote control. This allows production teams to direct the signal to different types of monitoring or recording equipment without disconnecting cables or rebooting the device.

In production environments where flexibility is key, this dual-output capability enhances efficiency. For example, HDMI can be routed to a main display while VGA drives a backup monitor. Alternatively, composite video can be sent to legacy distribution gear still in operation within some facilities.

VGA and CVBS Compatibility with Smart Scaling

For legacy compatibility, the VGA and AV (CVBS) outputs are equipped with auto-scaling functionality. This ensures that regardless of the incoming HD SDI resolution, the output is delivered in a format appropriate to the connected device. NTSC or PAL is selected automatically based on region-specific defaults or user configuration.

The VGA port supports DDC (Display Data Channel) functionality, allowing the CV180 to automatically detect and negotiate optimal display modes. This guarantees that output resolution aligns with the native capability of the connected monitor or projector, eliminating the need for manual scaling or signal matching.

Broadcast Signal Integrity with Recovery Technology

A critical aspect of this converter’s performance lies in its built-in SDI clock recovery and line equalization system. These features are designed to compensate for signal degradation that can occur after long-distance cable runs. This makes the CV180 especially useful in OB vans, stage environments, or installations where SDI runs may exceed recommended lengths.

Web-Based Configuration via USB-C Port

An integrated USB Type-C port provides access to a web-based management interface, allowing remote configuration and firmware updates via a computer. This platform offers access to output mode selection, resolution settings, and system diagnostics—all accessible through a browser. System integrators and broadcast engineers working with multiple devices across a facility will find this feature particularly valuable for centralized control and maintenance.

Simplified Operation with On-Screen Display

The CV180 features a menu-based on-screen display (OSD) that can be accessed through the connected HDMI or VGA display. From this interface, users can adjust resolution settings, select output formats, and monitor system status in real time. The presence of the OSD reduces reliance on external configuration software or guesswork, improving usability in fast-paced environments.

This system is particularly helpful when the converter is installed in permanent racks or high-access areas, as quick changes can be made without needing to physically connect to a computer or navigate complex DIP settings.

Rugged Build and Secure Power Connectivity

The hardware is constructed with reliability in mind. The locking DC power input ensures that accidental disconnection is prevented during live or mission-critical operations. This physical security is particularly useful for mobile setups or installations in which vibration or movement may pose risks to power stability.

Additionally, the converter is compact enough to be easily integrated into existing video systems, regardless of space constraints. Its layout and design support discreet mounting or portable use, making it a practical tool for technicians in both fixed and remote broadcast environments.
