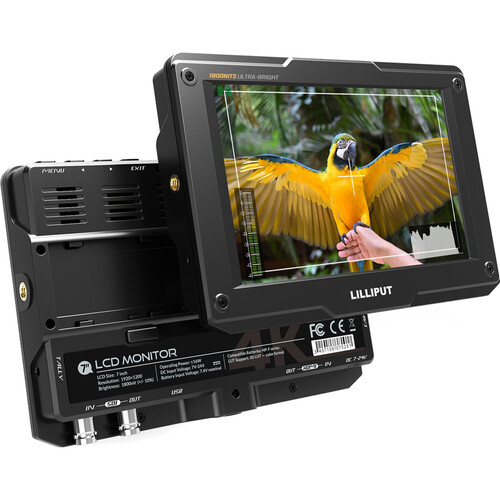

Lilliput H7S 7″ 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

The Foto Crown Provides Lilliput H7S 7″ Ultra-Bright On-Camera Monitor is built to meet the evolving needs of professional videographers and filmmakers shooting in 4K. Designed with versatility and high visibility in mind, this on-camera monitor offers essential monitoring capabilities for DCI 4K24 and UHD 4K workflows. With both HDMI 1.4 and 3G-SDI inputs, it integrates seamlessly into a variety of production environments, ranging from high-end cinema to compact DSLR or mirrorless camera setups.

Vivid Image Display with Ultra-Bright Clarity

Equipped with a 1920 x 1200 native resolution, the H7S LCD panel presents your footage in crystal-clear Full HD. However, it is capable of handling input resolutions up to 2840 x 2160, making it fully compatible with most 4K video signals. The 7-inch screen boasts a 16:10 aspect ratio, a 1200:1 contrast ratio, and a powerful 1800 cd/m² brightness rating, enabling confident monitoring even in direct sunlight or bright outdoor conditions.

This ultra-bright display reduces the need for a sun hood and enhances visibility on location. Even in challenging lighting environments, the monitor maintains accurate image clarity, color, and contrast. Therefore, you can focus on composition, exposure, and critical details with ease.

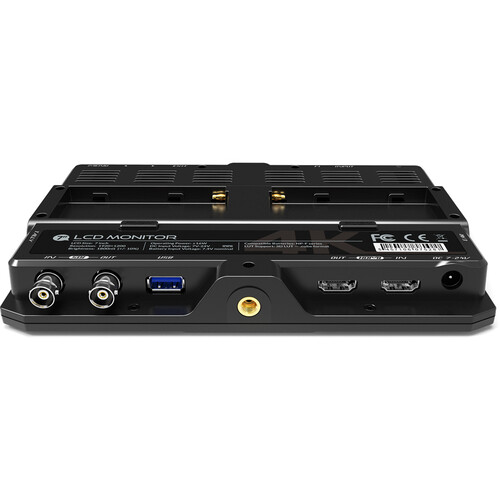

HDMI and SDI Connectivity for Flexible Use

Supporting both HDMI and 3G-SDI, the H7S caters to a wide range of camera types and professional gear. The HDMI 1.4 input accommodates DCI 4K at 24fps and UHD 4K formats, which are commonly used in modern filmmaking. For broader compatibility, the 3G-SDI input ensures that professional broadcast cameras and gear can also be integrated without signal loss.

Additionally, HDMI loop-through enables simultaneous output to another monitor or device. Whether monitoring your image on a director’s monitor or feeding it into a video switcher, the loop-out feature makes it simple to share the feed in real time without signal degradation.

HDR Support and 3D LUT Integration

One of the standout features of the Lilliput H7S is its support for High Dynamic Range (HDR) formats. It is compatible with a wide range of HDR standards, including ST2084-300, ST2084-1000, ST2084-10000, and Hybrid Log Gamma (HLG). This capability allows cinematographers and colorists to view footage with expanded contrast and color range directly on set, minimizing the need for guesswork during post-production.

In addition to HDR monitoring, users can load 3D LUTs (Look-Up Tables) via a USB port on the bottom of the device. This enables real-time color grading previews, simulating the final output look directly during production.

Efficient Power with Hot-Swappable Battery System

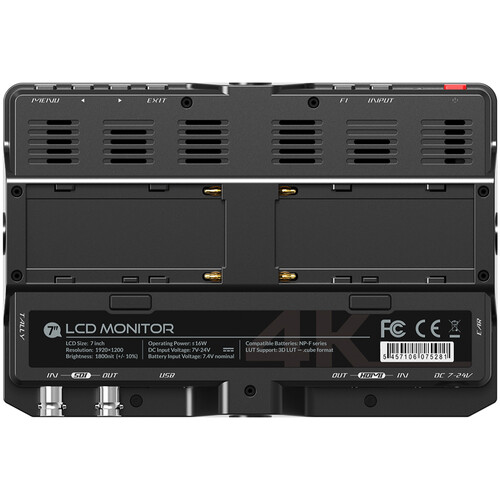

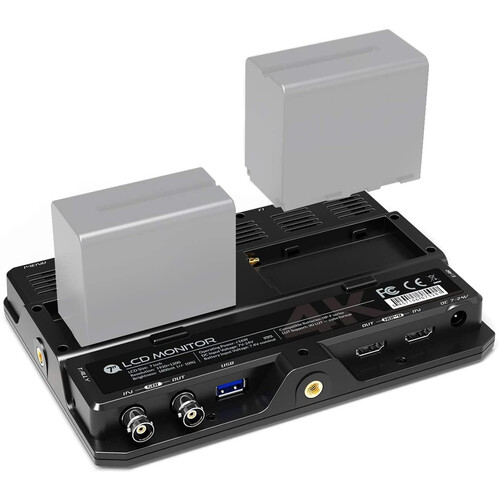

Designed with on-location shoots in mind, the H7S features a dual L-series battery plate on the back of the unit. This dual-mount system allows for hot-swappable batteries, so filmmakers can replace one battery while the other continues powering the monitor—eliminating the need to pause or power down during critical moments. Extended battery life, along with intelligent design, ensures that long shooting sessions remain uninterrupted.

Streamlined Controls and Functional Design

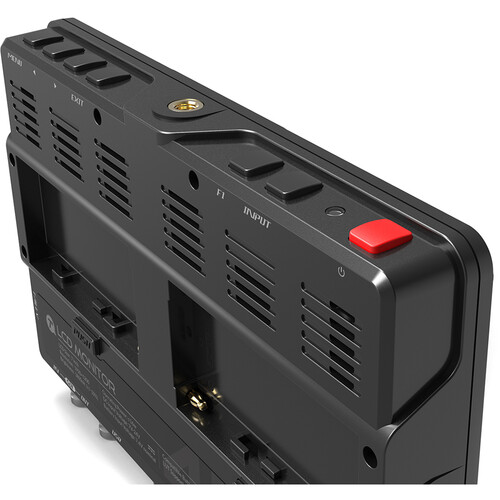

Surrounding the screen are intuitive control buttons, including two customizable function keys. Moreover, a built-in speaker and a headphone jack offer convenient audio monitoring directly from the unit. This audio feedback is especially useful when recording sound on location without separate monitoring equipment. Additionally, the tally input provides real-time cue feedback during multi-camera production, enhancing team coordination during live or recorded shoots.

Easy Mounting Options and Included Accessories

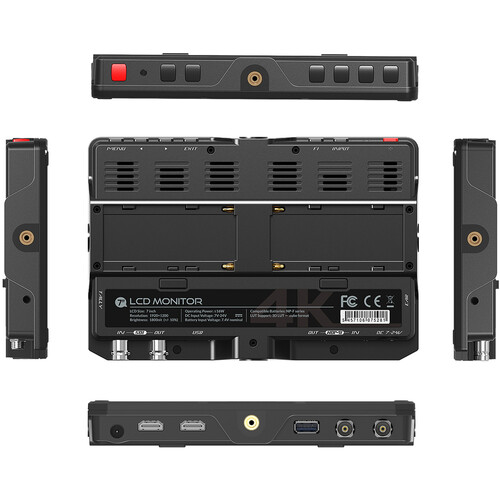

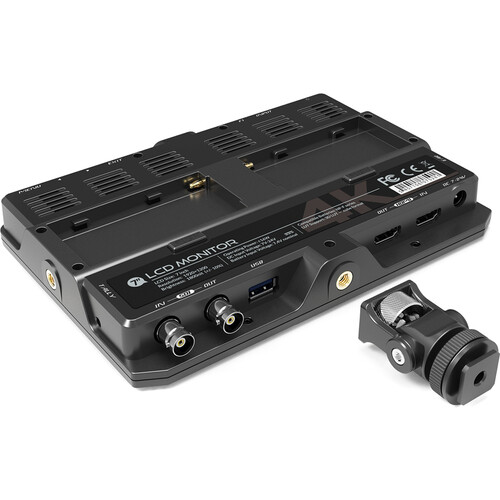

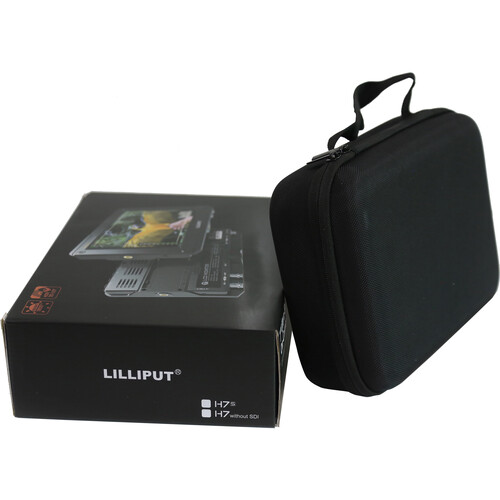

 It includes multiple 1/4″-20 threads located on the bottom and sides of the monitor, making it easy to attach to a wide range of rigs, arms, or cages. To ensure the H7S is ready for immediate deployment, it also comes with an HDMI Type-A to Type-C cable, tally cable, AC power adapter, and a carry bag. These included accessories simplify setup and transport, giving users everything they need to begin shooting with minimal delay.
