YoloLiv YoloBox Pro All-in-One Live Streaming System

The Foto Crown Provides  YoloLiv YoloBox Pro is a compact and powerful solution for live video production, enabling professional multicamera streaming from virtually any location. Built for creators, broadcasters, educators, and event professionals, this device integrates a monitor, encoder, switcher, recorder, and streamer into a single unit. With a responsive 8-inch touchscreen, multi-network connectivity, and support for high-quality audio and video sources, the YoloBox Pro is designed to simplify mobile streaming workflows.

Multi-Camera Input and Switching Capabilities

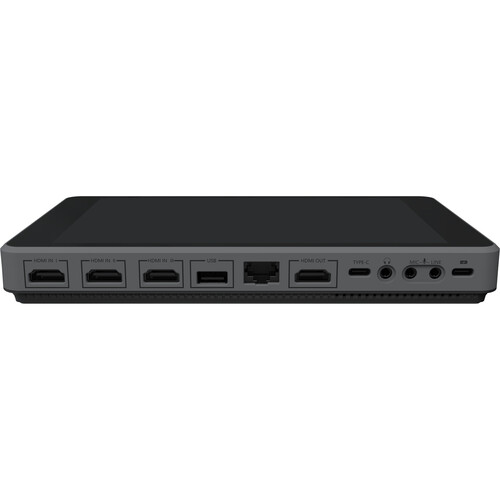

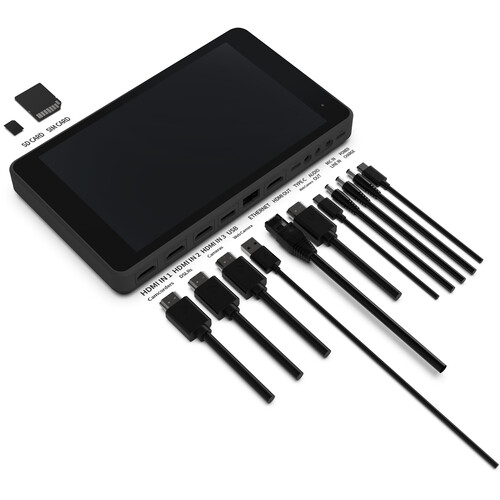

The YoloBox Pro allows connection of up to 10 video sources, providing full flexibility in live production environments. It features three HDMI inputs, one USB input, and one SD card input for pre-recorded media playback. Additional sources can include network streams or mobile devices through wireless sharing apps. This functionality allows for real-time switching between multiple cameras and media sources without external hardware.

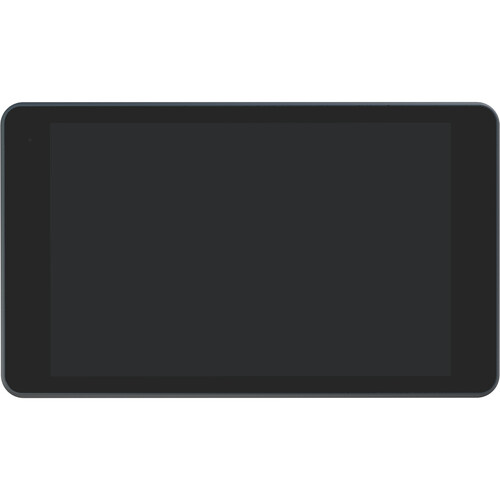

8-Inch Touchscreen with 400 cd/m² Brightness

The integrated 8-inch touchscreen display with 400 cd/m² brightness ensures excellent visibility in bright or dim conditions. It displays the live program feed, all video inputs, and an intuitive control interface. Users can switch sources, adjust graphics, trigger overlays, and monitor audio levels directly from the display with simple gestures. The screen also helps with framing shots and reviewing output previews, making production more efficient on the go.

High-Performance Qualcomm 660 Processor

Powered by the Qualcomm Snapdragon 660 processor, the YoloBox Pro handles intensive streaming tasks with reliability and speed. It supports live switching, encoding, and graphic overlays simultaneously without frame drops or delays. The processor enables smooth transitions and responsive controls during fast-paced events such as sports, conferences, and worship services.

Flexible Streaming to Multiple Platforms

The YoloBox Pro supports simultaneous live streaming to up to three platforms such as YouTube, Facebook Live, and Twitch. It also allows streaming to any destination using custom RTMP URLs. This versatility provides broader audience reach across different channels without needing a separate computer or encoding software.

Full HD Streaming and Recording

Video input is supported up to 1080p resolution, using H.264 encoding for efficient, high-quality streaming. Output resolutions range from 540p to 1080p, giving users control over bandwidth usage and video clarity. The device can also record streams in .mp4 format to an SD card, enabling quick storage and post-event archiving. The SD card slot supports up to 128GB capacity, suitable for long-form content.

Built-In 4G LTE, Ethernet, and Wi-Fi Connectivity

Streaming from anywhere is possible with the YoloBox Pro thanks to multiple network options. It connects via Wi-Fi, RJ45 Ethernet, or 4G LTE using a nano SIM card (data plan required, not included). This range of connectivity methods ensures dependable internet access in both indoor and outdoor environments. The system also includes a USB-C port for external modem connectivity.

HDCP-Compliant HDMI Inputs for Protected Content

The YoloBox Pro includes HDCP-compliant HDMI inputs, allowing users to stream and record content from protected sources such as digital set-top boxes or Blu-ray players. This support opens up additional use cases for corporate, entertainment, and educational presentations that require encrypted video content.

Multiple Audio Input and Output Options

Audio connectivity on the YoloBox Pro is designed to meet the needs of mobile producers. It includes a mic-level input, a line-level input, and a 3.5mm headphone jack for audio monitoring. HDMI-embedded audio is also supported. Real-time audio mixing can be performed on-screen, allowing for level adjustments and audio sync correction across multiple input sources.

HDMI Output for Local Video Display

An HDMI output port enables connection to external monitors, projectors, or video switchers for local viewing. This is useful in studio settings or live events where local monitoring is required. The output mirrors the live program feed and can be used for display to crew or participants. The onboard software includes options for adding custom graphics, lower-thirds, logos, watermarks, and countdown timers. Branding and informational overlays help elevate production value without third-party software or editing tools.

SD Card Media Playback Integration

In addition to live video inputs, the YoloBox Pro supports playback of pre-recorded video files via the SD card slot. This allows producers to mix in video ads, intros, or filler content during live broadcasts without switching devices. The feature is especially useful for hybrid events, remote interviews, or church services with prerecorded elements.

Rugged Design with High-Capacity Battery

The YoloBox Pro is engineered for on-the-go operation, featuring a 10,000mAh internal battery that offers extended usage times of up to 8–10 hours. This high-capacity battery ensures uninterrupted streaming even during long shoots or events where external power is unavailable. Its portable and durable build allows for easy transport and field deployment.
